Today I’m going to be taking a good look at the Wotofo Profile Squonk mod, a dual use box mod designed by YouTuber Mr.Justright1.
Wotofo is based in China they have been operating since 2009, and they have bought us devices like the Mdura Pro, Dyadic Sqounk mod and Chieftain mod and RDA toppers like the Serpent BF RDA, Srpnt RDA and the Profile RDA.
What Can We Expect From the Wotofo Profile Squonk Mod?
This mod doesn’t need to be pigeonholed solely as a regulated squonking device!
It has two modes of operation, in squonk mode it comes with a 7ml squonk bottle and runs up to 80w on one 18650 battery, and in dual mode the device is capable of 200w of power.
The chipset inside is the fast 0.001 instant fire Wotofo NexChip.
At the time of this review the Wotofo Profile Squonk Mod is available in 2 colours.
This device was sent to me for the purpose of review.
Like always my views and thoughts are my own after a long testing period.

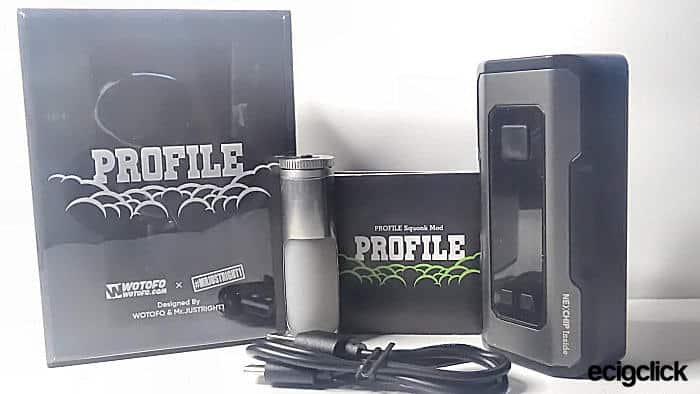

Inside the Box
- Profile Squonk Mod
- 7ml Squonk Bottle
- Type-C Charging Cable
- User Manual
Specs and Features
- Dimensions: 93.85×44.4x30mm
- Net Weight: 135g
- Wotofo NexChip
- 5-80W in squonk mode
- 5-200W in dual battery mode
- Type-C charging
- 96″ TFT Screen
- Material: Zinc Alloy + PC
- Single or dual 18650 battery (not included)
Design and Build Quality
I was sent the Gunmetal version for this review, and it was presented nicely in a cardboard box with a plastic over sleeve.
Wotofo Profile Squonk Mod Overview
Measuring in at 93.85mm tall with a 30mm tank diameter, the width of the device is 44.4mm it’s made of Zinc Alloy and plastic materials, and weighs 135g straight out of the box.
From the Top
The Profile Squonk has a centralised stainless steel 510 connection plate with well turned threading, and a gold plated hollow squonk pin that is springy.

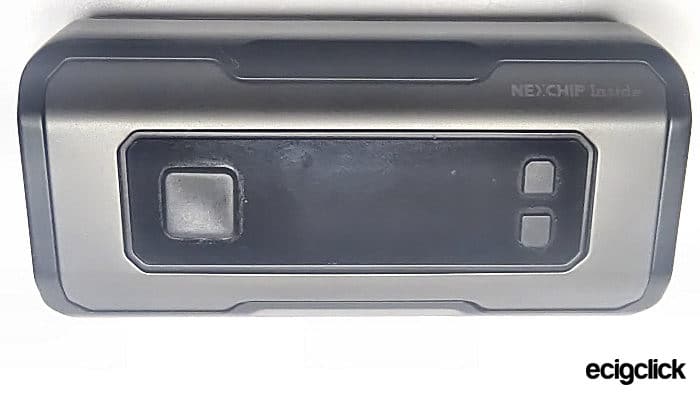

Wotofo Profile Squonk Mod – Front
It has a bright 0.96” TFT colour display that shows everything you would normally expect to see.
Both adjustment and fire buttons are made of plastic, and while the fire button is at the top centre of the mod, it has a nice clicky feel to it and is easy to reach and use.
Alongside the screen at the bottom is printed “NexChip inside”.
Wotofo Profile Squonk Mod – Body
Thanks to the beveled sides and the 44.4mm thickness of the device, it is very comfortable to hold in the hand for an extended period of time.

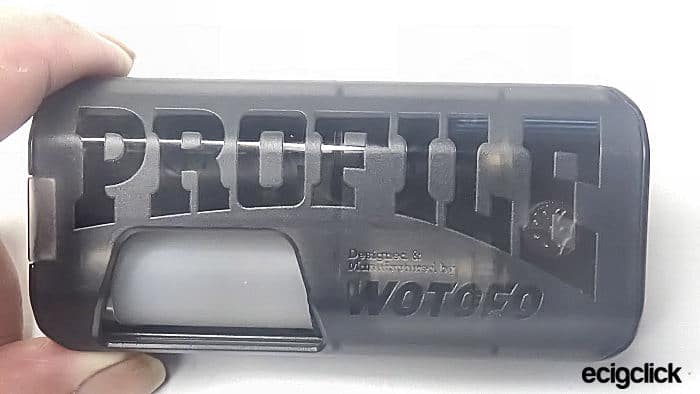

Wotofo Profile Squonk Mod – Battery Door
On the rear of the device is a plastic magnetic battery door that has been moulded heavily with logos, the door has 2 strong magnets top and bottom to hold the door in place, and has a wide thumb slot for activating your squonk bottle.
Removing the door is aided by a thumbnail slot.

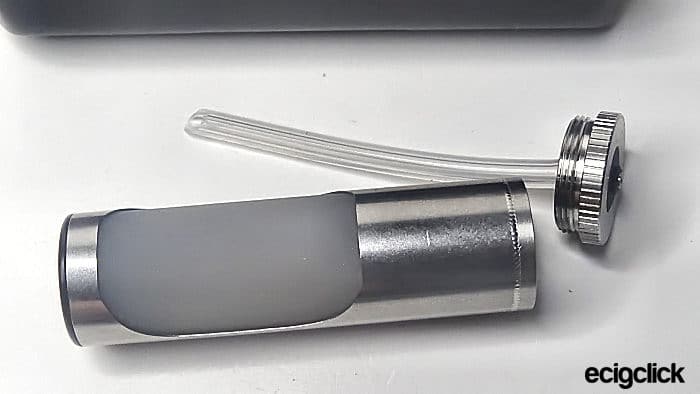

Inside the mod you’ll find a pre installed a 7ml silicone squonk bottle, which sits inside an aluminium cage that has a screw cap.

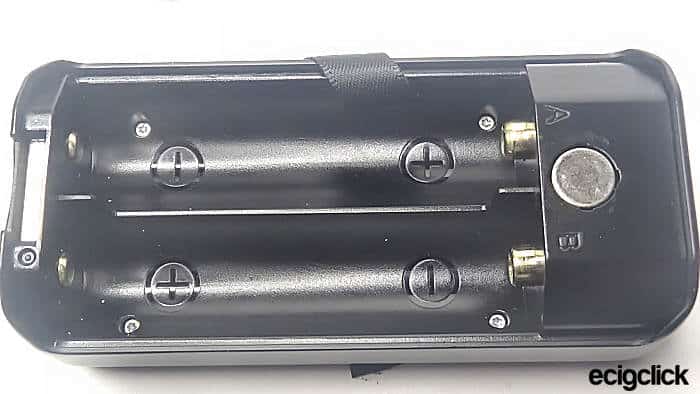

Wotofo Profile Squonk Mod Battery Sled
When the bottle is removed the device has a clean plastic battery sled with a side ribbon for removal of your battery and squonk bottle.
Personally I think there is a slight design flaw here – to change your battery out, you have to pop out your bottle as well.
Had Wotofo used 2 ribbons centre seated, removal of just the battery would be easier.
The battery sled is well marked for battery orientation, with gold plated battery contacts and marked on the sled as A & B – B being the hollow 510 squonk pin.
I can see another small problem here with liquid on your battery, in dual mode.
Wotofo Profile Squonk Mod – Bottom
On the bottom of the device you will find your Type C USB 2A charge port, along with loads of advertising and safety marks.
All told the Profile Squonk is good quality, although I feel it’s a wee bit tall for a squonk.
Before I even used this device I spotted a few minor issues with it, or am I just being picky?
How Does the Wotofo Profile Squonk Mod Perform?
For this review I will be using the Wotofo Srpnt RDA in squonk mode.
And later with my Hellvape Fat Rabbit RTA in dual mode!
I will also be using Flavour Burst – Apple Burst e-liquid in both atomisers.
Wotofo Profile Squonk Mod Quick Start Guide
Decide if you want to squonk or not!
As a Squonking device
- Remove the plastic battery door and take out the 7ml bottle, unscrew the cap and fill with E-liquid.
- Replace the cap and replace into your mod along with a freshly charged 18650 battery!
- Prepare your BF RDA as you would normally, and then screw on to the Profile Squonk mod.
- Lightly squeeze the bottle until you see liquid dampening your cotton.
As a normal dual battery vaping device
Remove the bottle, making sure you clean any remaining E-liquid from all contacts in particular the squonk pin! Insert 2 freshly charged 18650’s add your tank and away you go!
You can charge the batteries via the type C port, but as always I recommend using a standalone charger!
Functions
- Click the fire button x5 fast to turn the device on and off.
- Using the up and down buttons will alter the wattage.
- Click the fire button x3 will completely lock and unlock the mod.
- Holding down both adjustment buttons will lock and unlock the wattage.
- Fire and up buttons together, will allow you to change to any of the 6 theme colours – red, yellow, blue white, purple and green.
- Fire and down button together will clear the puff counter!
The device will adjust and round robin from 5 to 80w with a single 18650 or 5 to 200w with dual 18650’s
The mod has a 0.001 instant fire thanks to the NexChip, and includes protections like Atomizer detection, Overheat and PCB safety shut off.
Wotofo Profile Squonk Mod – In Use
Let’s to the heart of this device!
Squonk Mode
I love squonking – it can be a good alternative to dripping!
I’m not going to lie here and say this the best squonk mod I have ever used, that pleasure for me belongs to the Dovpo Topside dual, however I will say it would be perfect for beginners to learn about all the pitfalls of squonking before going the route of a more expensive squonk device!
Wotofo Profile Squonk Mod – Screen
When I fired up the device in squonk mode, the first thing that caught my eye was the greyed out battery B indicator.
The next was the size of the fonts and the amount of wasted space on screen; while the screen is easy to read indoors, outside in direct sunlight it’s not!
Squonk Mode
I had no problem using the device in squonk mode, it does take a few seconds for the squonk action to start working.
And just for the record the Wotofo Srpnt RDA functioned perfectly on the mod producing good flavour and excellent vapour production!
The only thing that got on my nerves is when switching out the battery was also having to remove the bottle at the same time.
Although in an odd way this did serve a purpose as each time I did so, I wiped out any stray liquid in the battery sled.
Wotofo Profile Squonk Mod Dual Mode
I’ve got to say I hate this door, there is far too much blatant advertising on it and in this mode one of the two 18650 batteries is left partially open to the elements.
I also had to make sure in dual mode, that no liquid was left in the hollow 510 connection as well as the tube used to transport the liquid to the 510, before inserting my dual 18650 batteries – I did this by blowing into the 510 connection and giving the sled a good clean after.
The mod functioned wonderfully as a standard vaping device, with my Fat Rabbit RTA on top I achieved 120w without bothering my micro lungs to much lol.
Wotofo Profile Squonk Mod Battery Life
In squonk mode I find at 35/40w I get about 2 hours vape time, and in dual mode I get just about 3.5 hours at 65/70w.
Pros
- Fair Quality
- OK Design
- Fast firing
- Fair battery life under normal use
- Very comfortable to hold
- 7ml liquid squonk capacity
- Good price if you shop around
Cons
- Battery ribbon
- Battery door thumb slot in dual mode
- Cleaning out liquid from the 510
- Too much advertising
Final Review Verdict
OK I found some minor niggles with this device, but I don’t want them to detract on the way this device functions which is admirably in both modes.
This is an innovative mod without question due to the 2 modes, however I can’t really say who would go for this type of device?
I can’t really see the device being a hit with the diehard squonk crowd, and as a regular device some might have an issue with the thumb slot.
The advertising on this mod is blatant and over the top!
Would I recommend the Wotofo Profile Squonk Mod?
Maybe for those who want to learn how to squonk and all its pitfalls before buying a more expensive squonk device.
Would I buy this device again due loss or damage?
For me personally “No” I have better squonk devices at hand.
So…is this a squonk mod you;re using or looking to buy?
Please let me know your thoughts and opinions in the comments below.
yeah no. Got device – first one failed after 3 weeks. There is a spring on the positive terminal of the left most battery (the non-optional one). This spring is up top where the 510 mount is connected to the system board and all of that. the spring is backed by a shoddy little piece of plastic with the smallest t3 or t4 headed screwes. This plastic piece had stripped itself off and was no longer connected to the case. Therefore the positive terminal connection was not reliably made and the device failed. I tried soldering and making some reinforcements for this but it didnt work out.
So wotofo sends me another one and it dies on week one due to who knows what. I couldn’t find the issue nor could anyone else I had correspondence with. They had been telling me for the last 2 months that they are going to replace the device. #nope. No replacement. This one had a workable spring backer so I tried to graft this into the 1st unit… it was only 2 t3 screws! It worked once but then I kept getting “CHeck Atomizer” warnings with tanks that hit fine on other gear.
Anyway, Im not angry as hell but I am mad. 🙁
